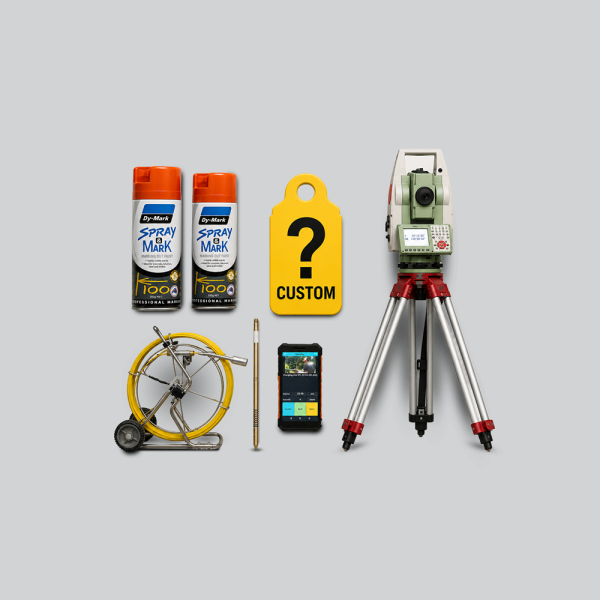

Custom manufacturing and sourcing
We can scout for any custom idea or part you may need for survey delivery down the hole. Please reach out if you have a custom concept, we can manufacture for you.
We are able to source required hardware, or craft custom concepts internally or with our suppliers.

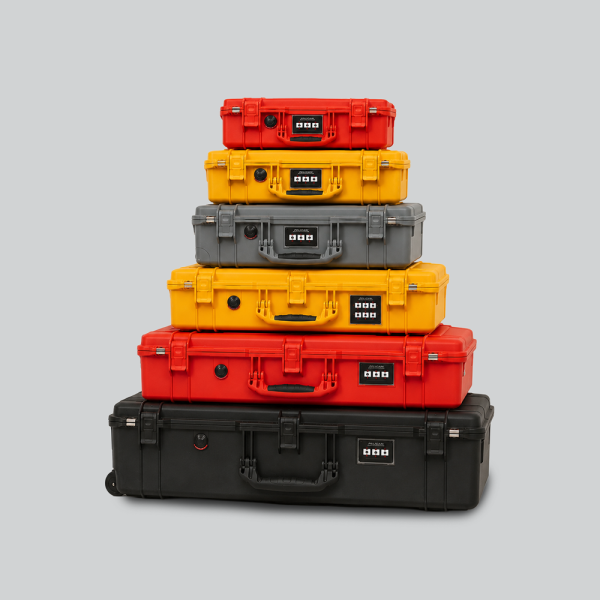

Custom Pelican Cases for Prism Storage
Secure your wall station accessories in the ute tray with our custom-made pelican cases. No more damage or unwanted abuse of prisms or spigots!
- Pelican hard case design for secure prism storage
- Custom foam inserts cut for your needs
- 3,4,6,9 prism boxes available
- Minimum order (MOQ): 1 unit
- Note: does not include prisms and/or spigots

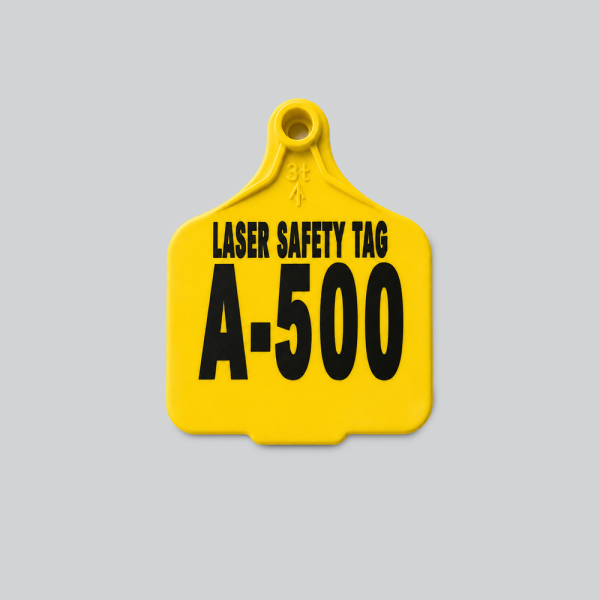

Laser ID Cattle Tag
Additional reference for communicating the laser ID to drill operators.
- Yellow medium sized cattle tag
- Unique # for ID and references of survey laser in-situ
- Minimum order (MOQ): 50 units. Orders must be placed in multiples of 50.

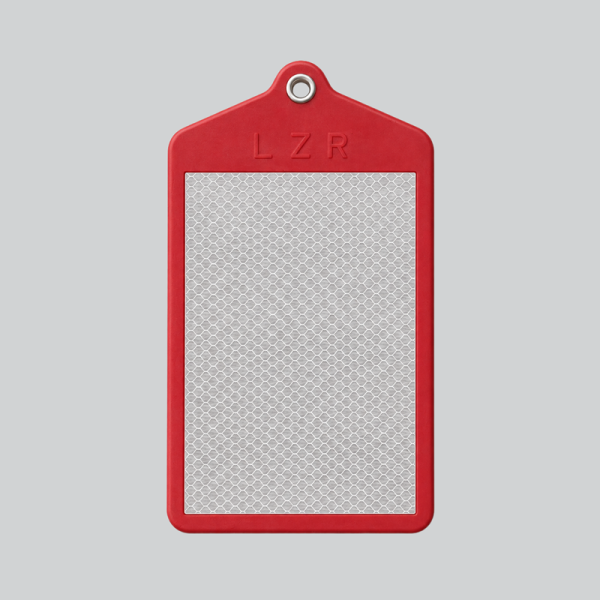

LZR Tag – Survey Laser Protection Device
The original & best survey laser protection mat. The LZR TAG improves protection, speed of install and visibility of underground survey laser for jumbo development.
- 120mm x 210mm
- 12mm thick moulded hardened rubber
- 8.5mm pilot hole for fixing to the wall
- Marked LZR and with stapled reflective tape for easy identification
- Minimum order (MOQ): 50 units. Orders must be placed in multiples of 50

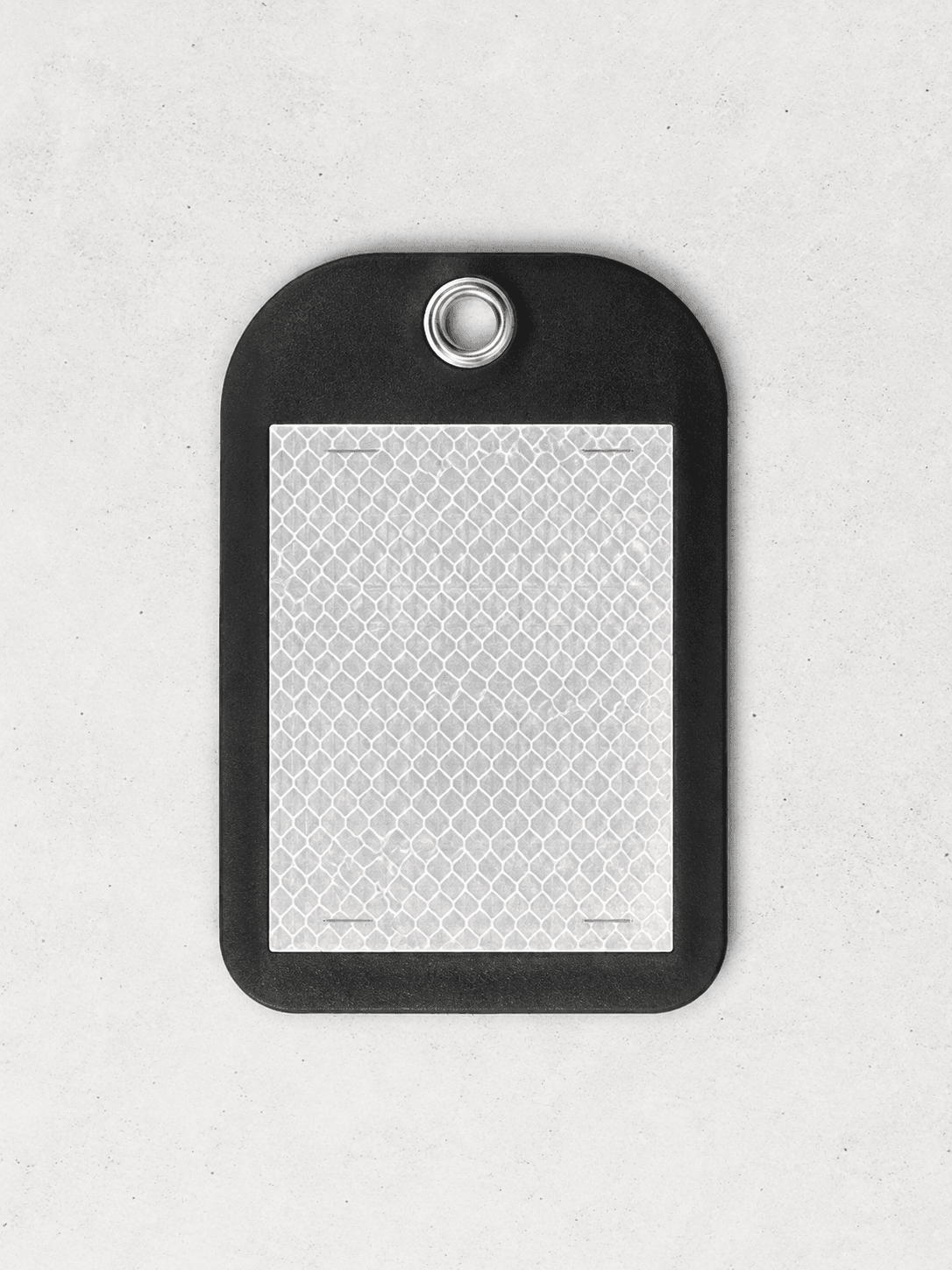

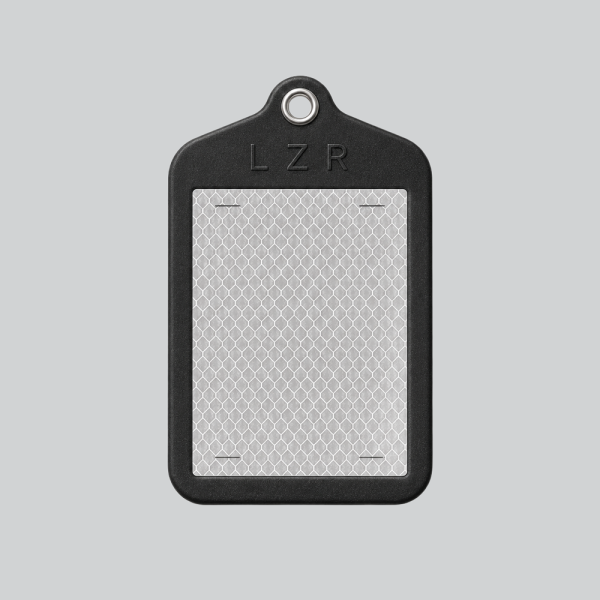

LZR Tag Mini – Survey Laser Protection Device
Smaller, lightweight mat for tight installs down the hole. The LZR TAG mini offers protection, and visibility of underground survey laser for jumbo development.
- 130mm x 100mm
- 3mm thick moulded hardened rubber
- 10mm pilot hole for fixing to wall
- Stapled reflective tape for easy identification
- Minimum order (MOQ): 50 units. Orders must be placed in multiples of 50

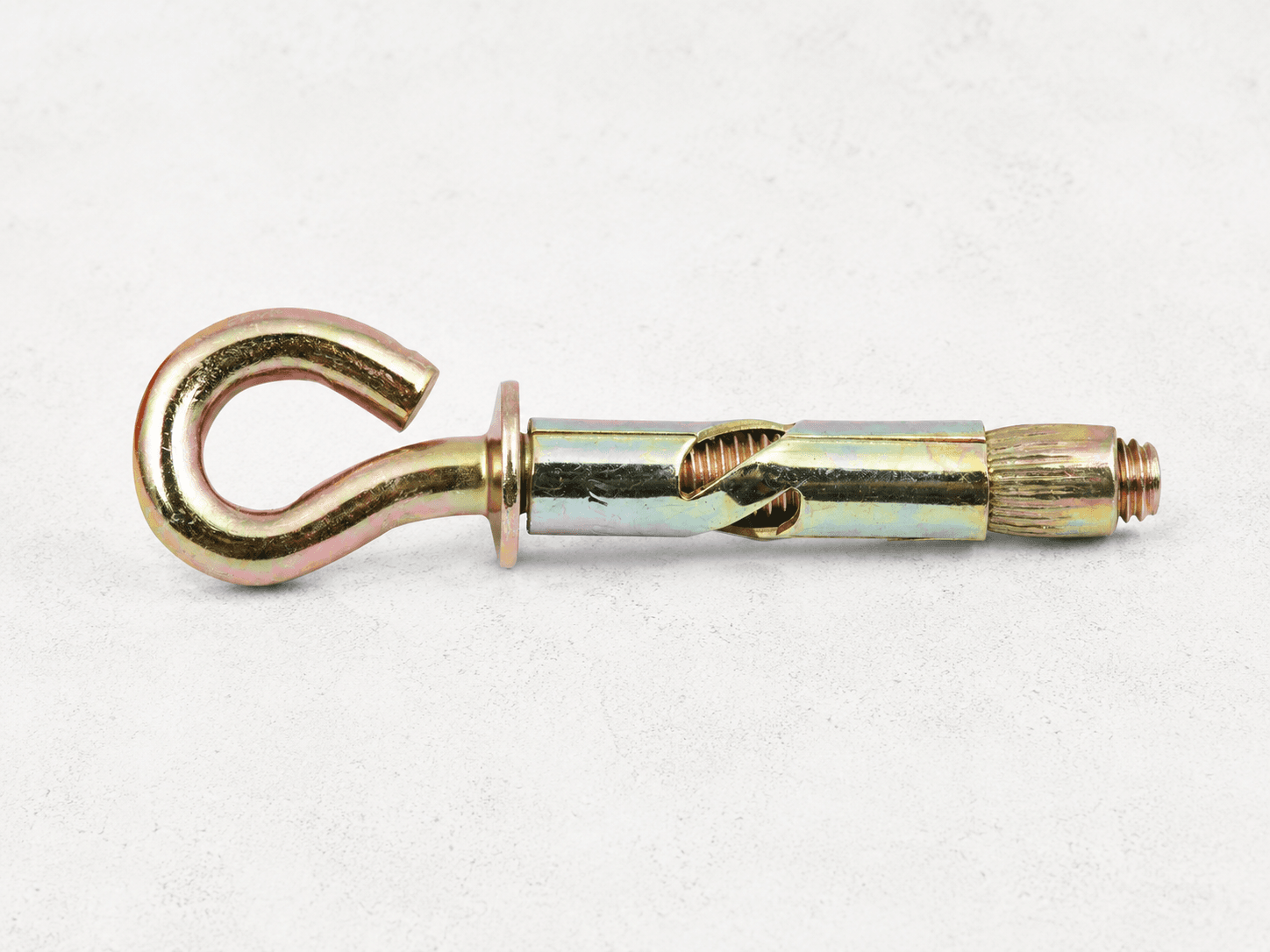

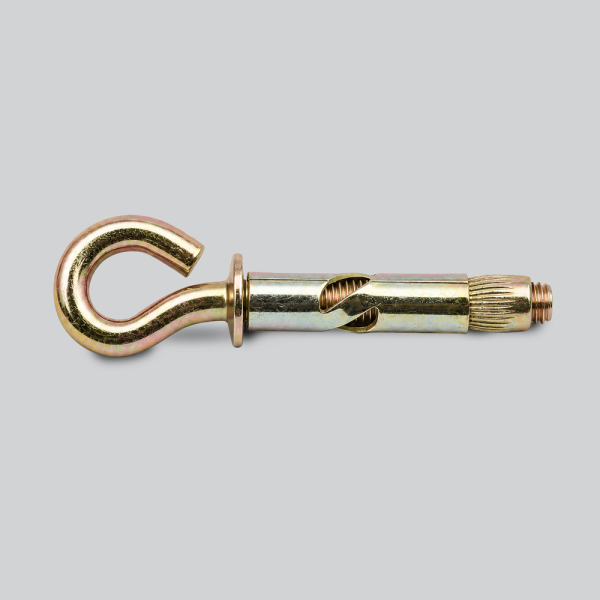

Ramset Anchored Eye-bolt
The industry standard eye bolt for pin pointing survey marks underground.
- Anchored Zinc Plated Sleeved Eye-bolt
- 8mm x 45mm
- 63mm hole depth required
- Minimum order (MOQ): 100 units (one box). Orders must be placed in multiples of 100.

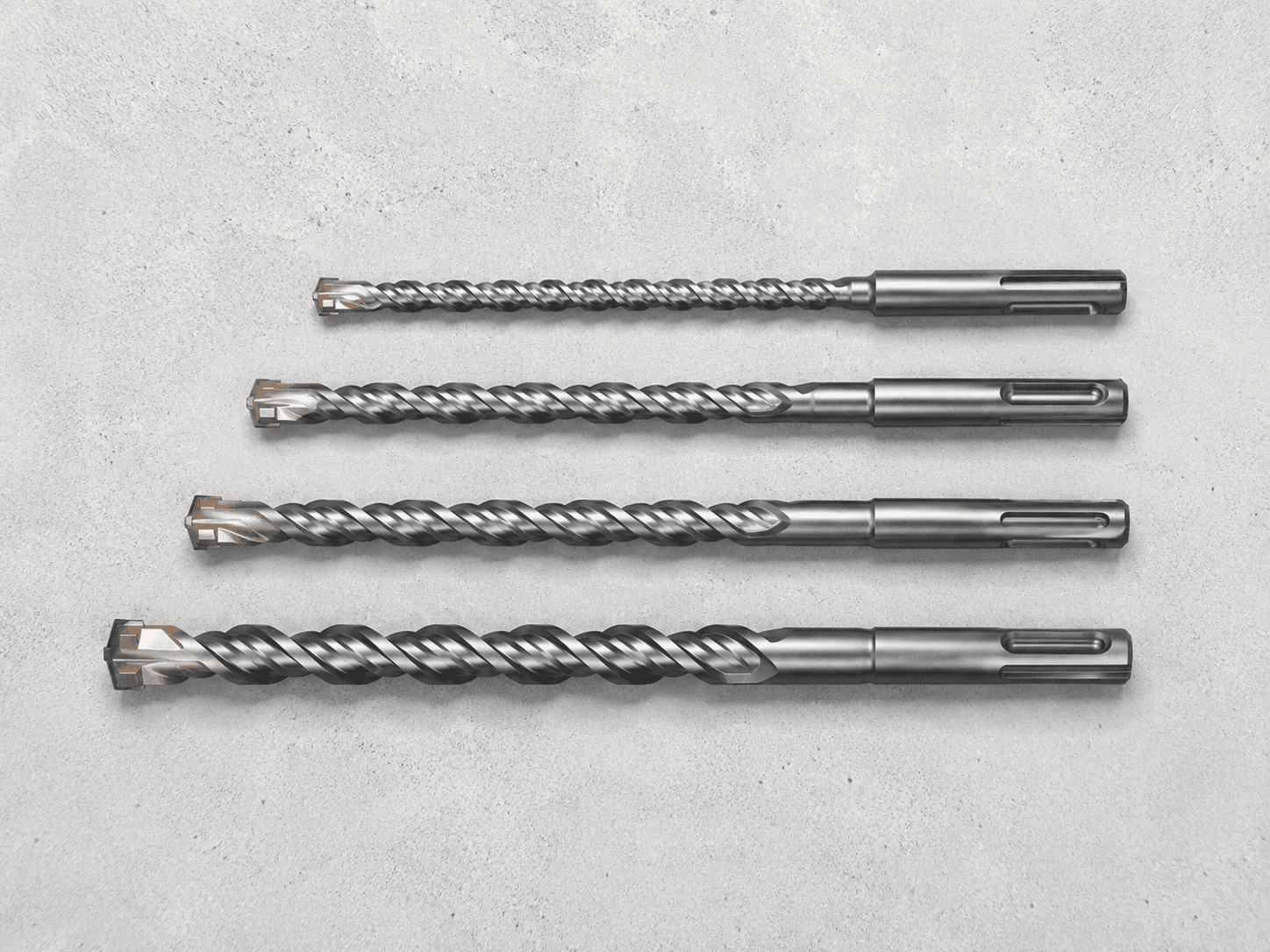

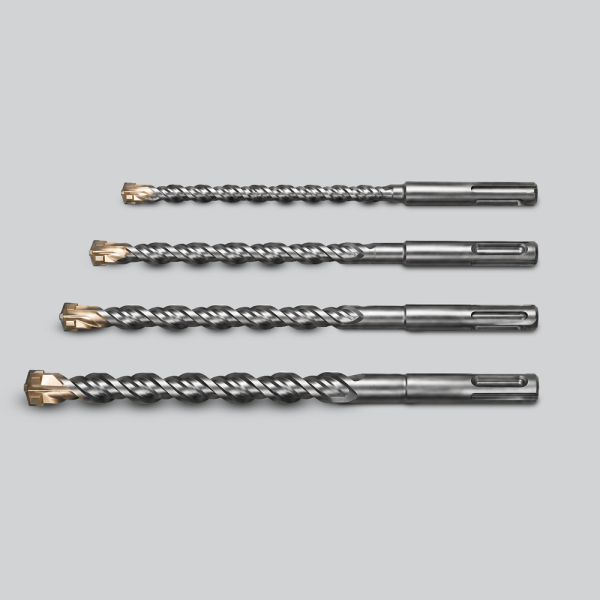

SDS Drill bits – Raptor Tech brand
Better than Hilti, at a fraction of the price. SDS Drill bits for underground use.
- 6mm to 24mm diameters available
- 4 Cutter Drill Bit Design
- German made
- Minimum order (MOQ): 25 drill bit minimum (special order)

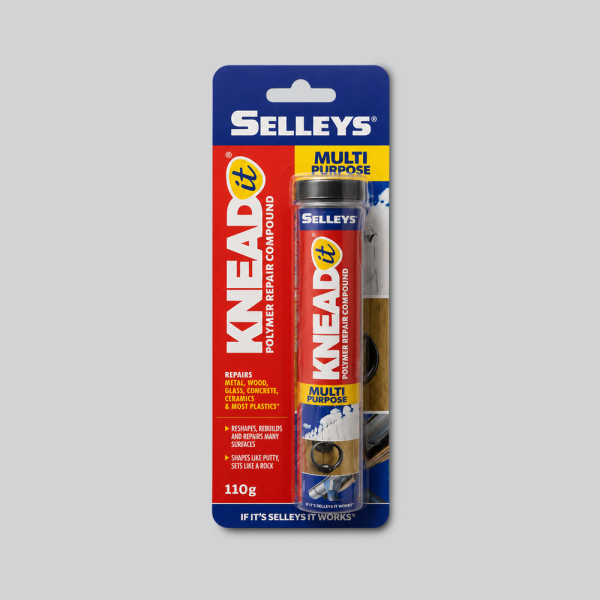

Selleys’ Knead It
For reliably installing laser and wall station sleeves with accuracy. The underground surveyors’ resin of choice.
- 110g tube for laser install
- Multipurpose expoxy polymer compound
- Minimum order (MOQ): 12 units. Orders must be placed in multiples of 12

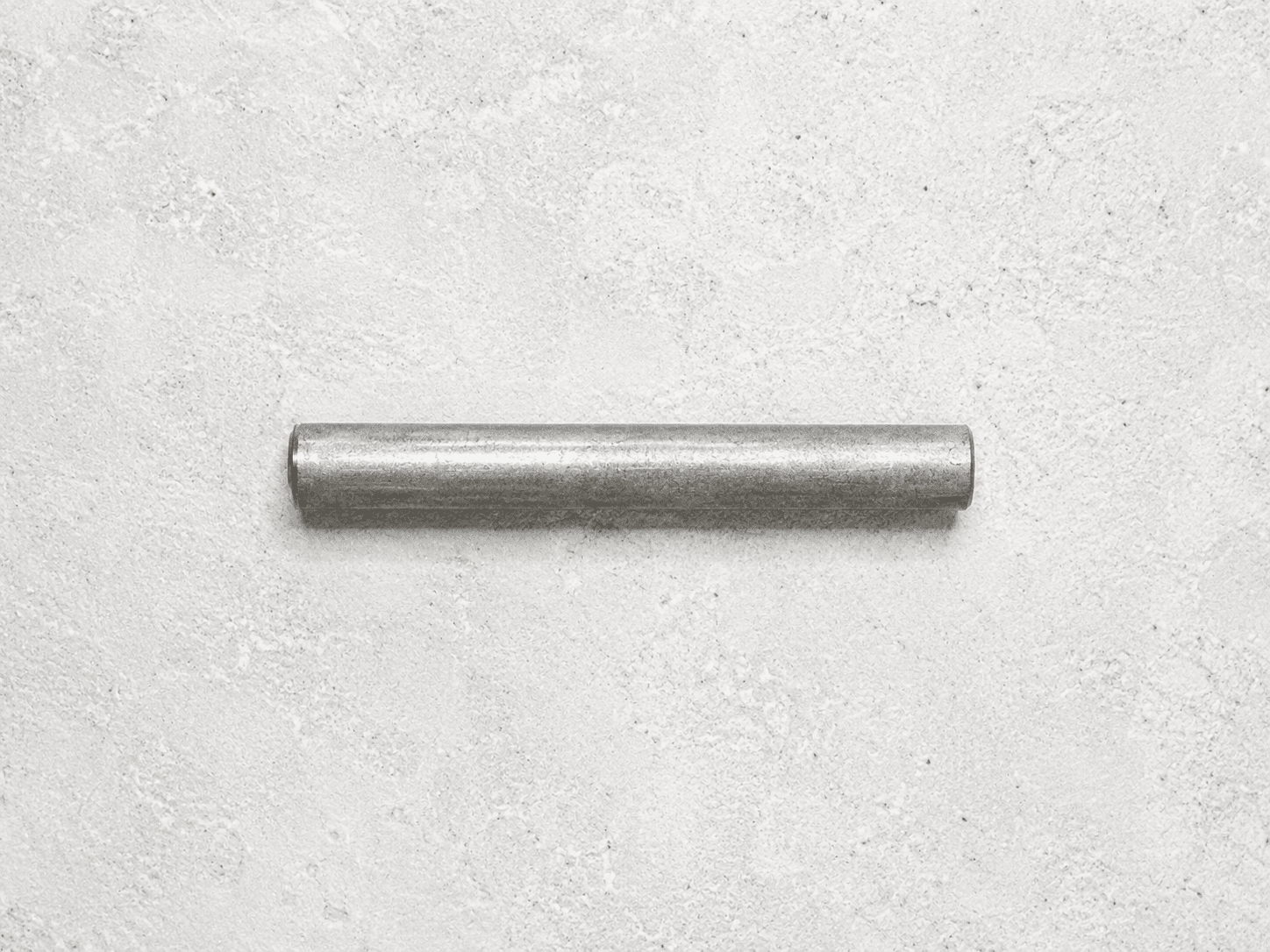

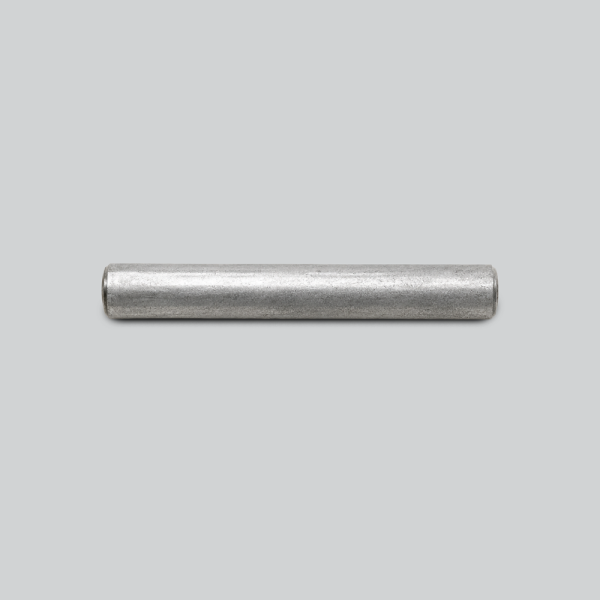

Stainless Steel Wall Station Sleeve
These wall station sleeves will help deliver the most accurate survey control in your underground workings.
- 8mm internal diameter
- 10mm external diameter
- 80mm long
- 308 stainless
- Cut to length and deburred.
- Minimum order (MOQ): 200 units. Orders must be placed in multiples of 50

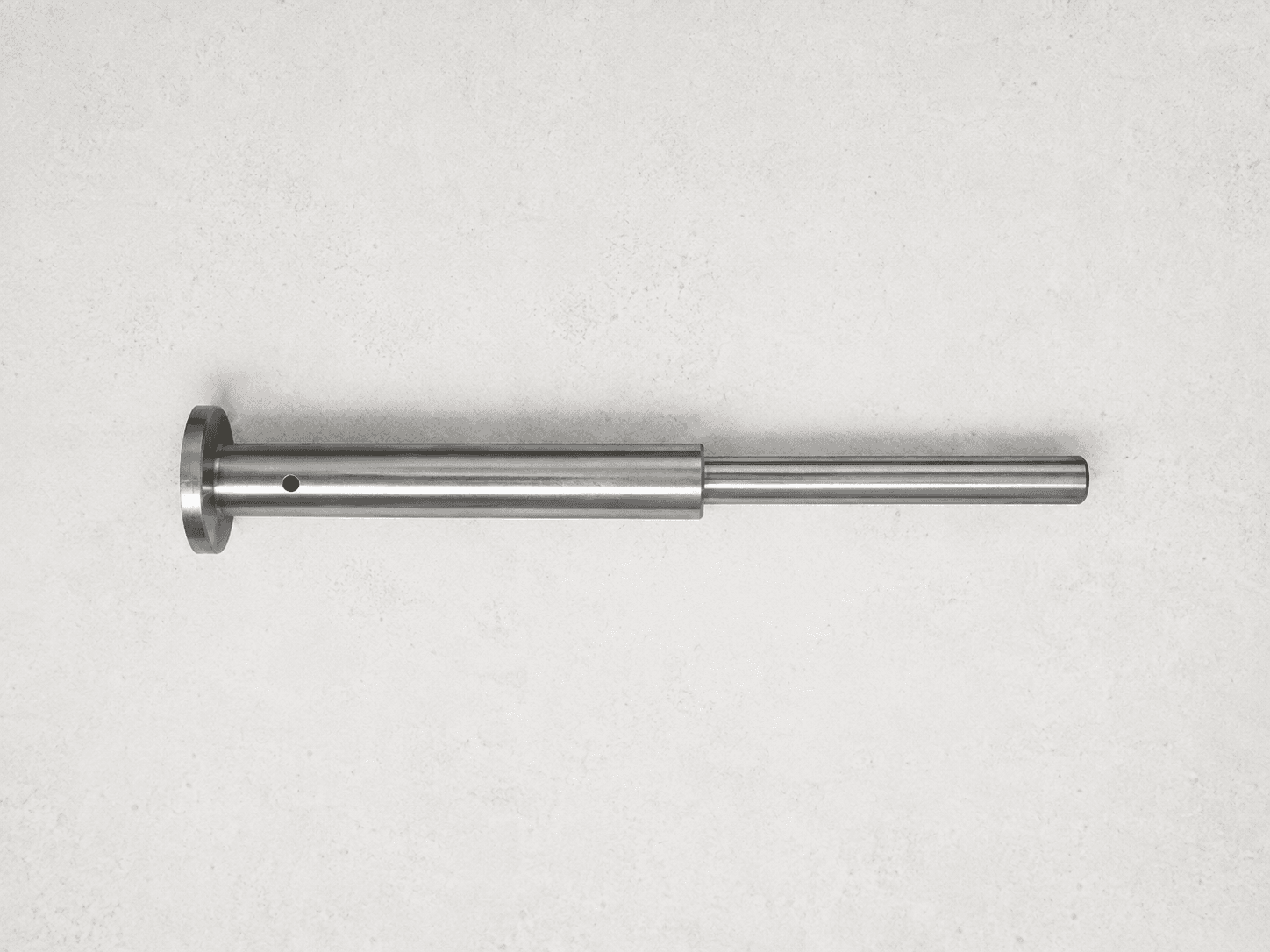

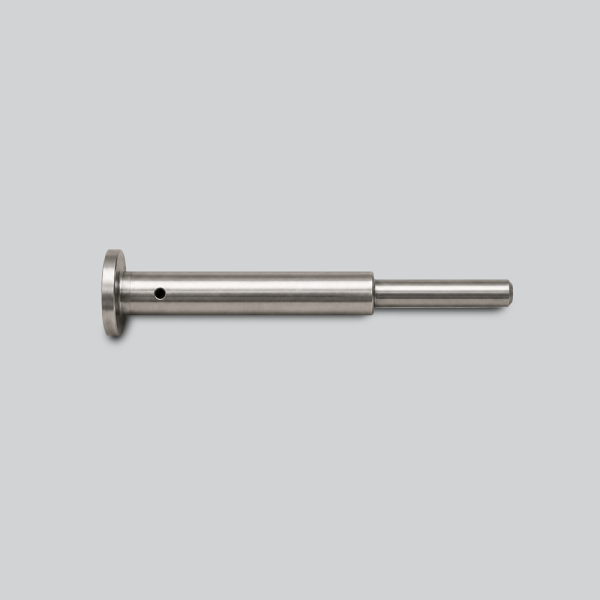

Stainless Steel Wall Station Sleeve Installer
Tool for quickly installing wall station sleeves with precision when down the hole.
- Stainless Steel fabricated
- Minsup eyelet for easy attachment to miner’s belt
- Minimum order (MOQ): 1 unit

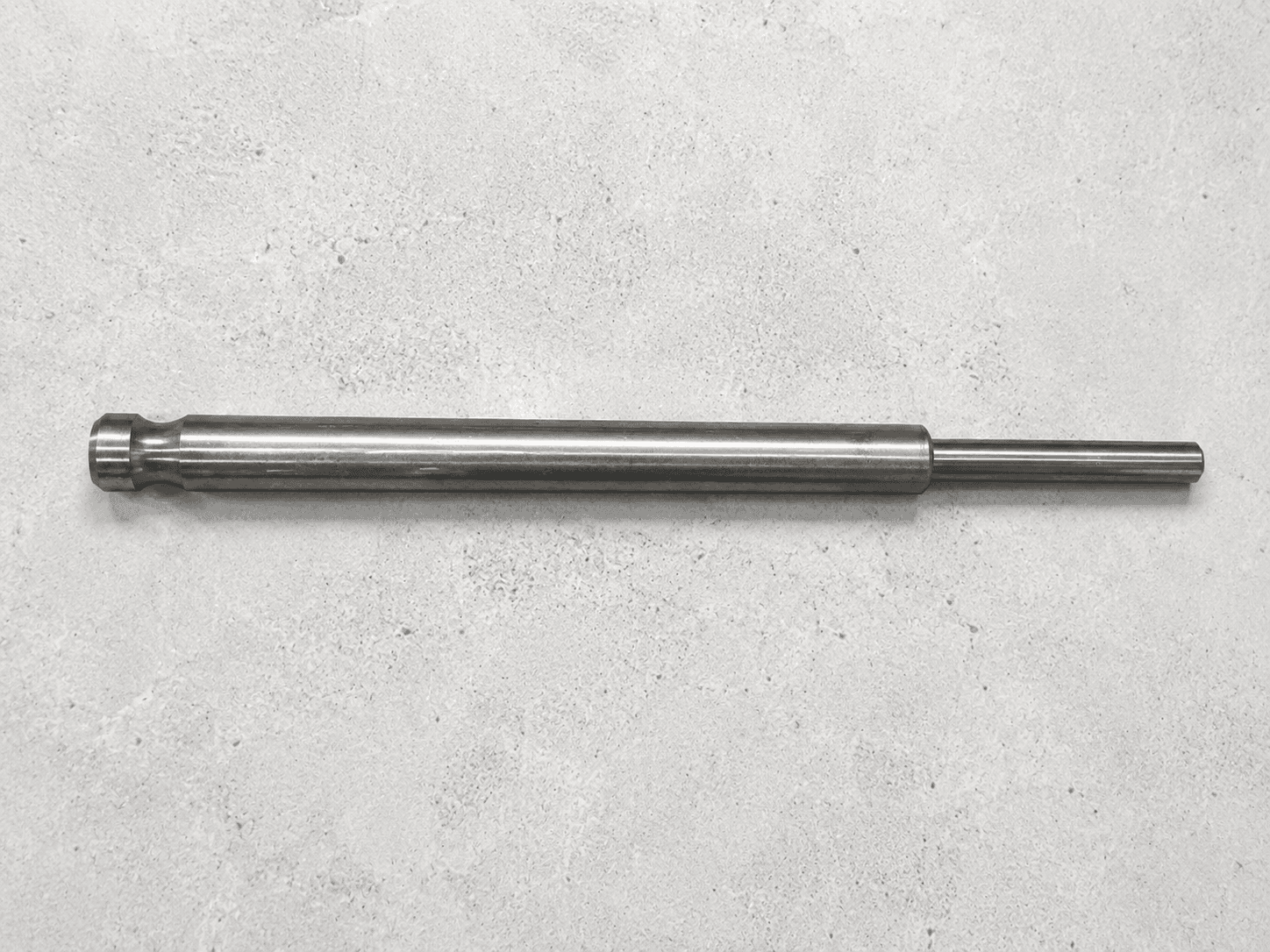

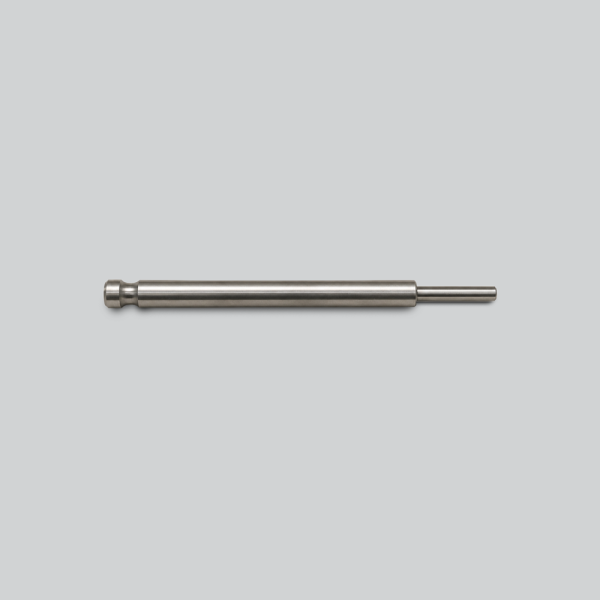

Stainless Steel Wall Station Spigot
For use with underground survey wall stations, and Leica prisms (not included).
- 12mm / 7mm stainless steel wall station spigot
- 200mm overall length
- Suitable for Leica-style prisms
- Prism not included
- Minimum order (MOQ): 3 units.

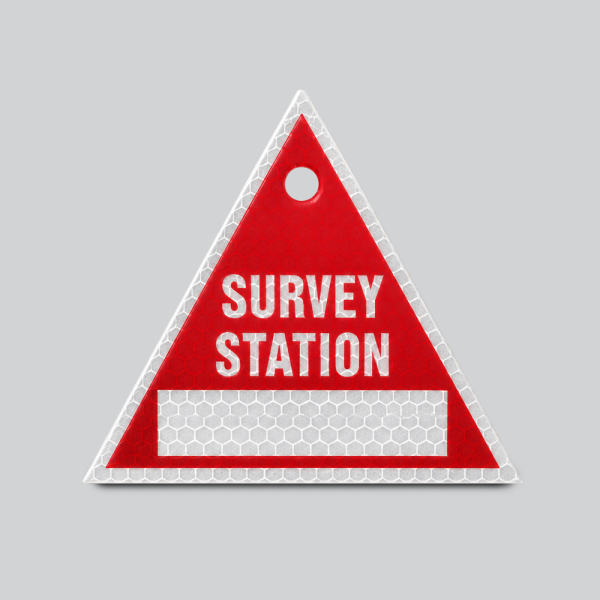

Wall Station Survey Markers
Simple reflective plaque for marking decline and access level survey control.
- 85mm x 100mm reflective metal triangle
- Affixed to wall with 8mm Dyna-bolt
- Improves survey network visibility and identification
- Minimum order (MOQ): 200 units. Orders must be placed in multiples of 100
REQUEST A QUOTE
Please complete the following form and we will get back to you with a quote including delivery. If you are an existing customer, you can use this form to submit an order for processing and we will send you an invoice. Orders will be dispatched within 2 business days of payment.
